Swastik Kavach SK-01

In-depth device details

Estimated physical details, hardware stack, controls, features and prototype-level specifications for SK-01.

Model Swastik Kavach SK-01

Device Type Compact SOS safety wearable / keychain / pendant device

Estimated Size 65 mm × 38 mm × 16–18 mm

Estimated Weight 45–65 grams, depending on battery and enclosure material

Body Material Matte ABS / polycarbonate enclosure with rounded edges

Battery 3.7V Li-ion rechargeable battery

Battery Backup Target 3–5 days depending on GPS, GSM and audio usage

Charging USB-C or magnetic charging port with TP4056-style charging circuit

Connectivity SIM7600 / GSM / 4G / GNSS module

Controller TesController AI core

Storage MicroSD / secure flash for audio and event logs

Emergency Output Buzzer / siren driver and remote siren relay support

Key functionality planned for the Swastik Kavach SK-01 safety device.

🆘

Silent SOS Button Large front SOS button for quick emergency trigger without depending on a mobile phone.

🎙️

AI Voice Trigger Microphone input can detect emergency keywords and capture audio evidence during alert mode.

📍

Live Location GNSS/GPS module sends live location during emergency events.

📡

Phone Independent Network SIM7600 / GSM connectivity allows alerts even when the user phone is unavailable.

🛡️

Tamper Detection Supports tamper switch, vibration event and case-open detection logic.

🟢

Hidden LED Low-profile indicator for charging, battery, network and emergency status.

🚨

Siren / Buzzer Acoustic outlet for local buzzer and optional remote siren activation.

🗄️

Evidence Storage MicroSD or flash storage can save emergency logs, GPS trail and audio snippets.

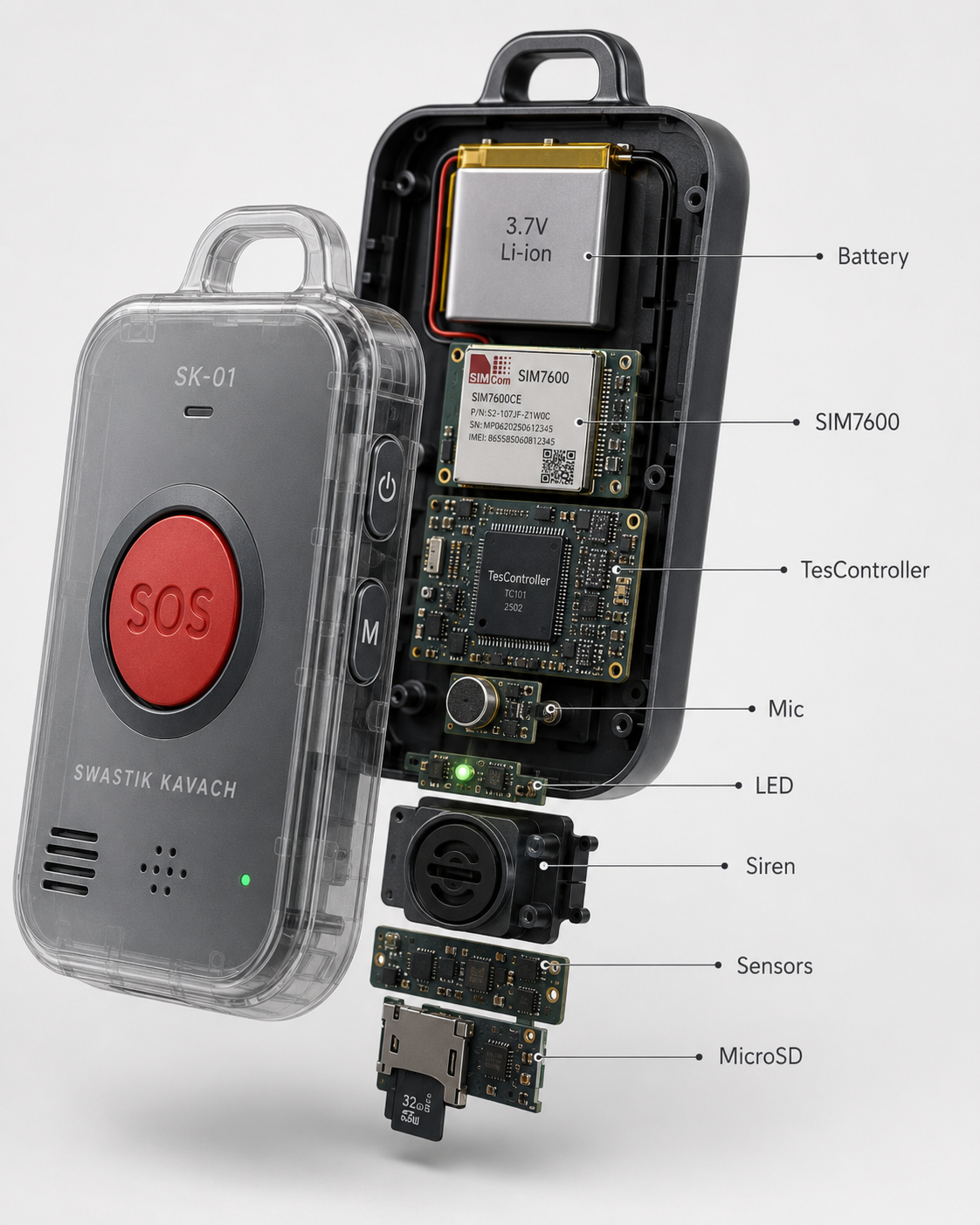

Layer-by-layer view of how the compact enclosure can be arranged internally.

Front Shell SOS button, mic holes, siren grille, hidden LED and SK-01 branding

Sensor Layer INMP441 microphone, accelerometer, vibration sensor and tamper switch

Control Layer TesController AI core for trigger logic, risk scoring and device control

Network Layer SIM7600 module with GSM / GNSS antenna path

Evidence Layer MicroSD card or secure flash memory for logs

Power Layer 3.7V Li-ion battery, charging circuit, boost converter and protection circuit

Uploaded image references for external product view and exploded internal module view.
